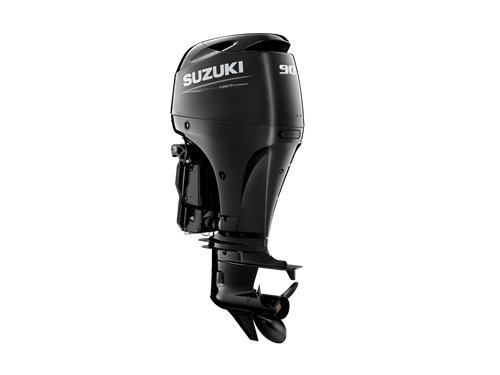

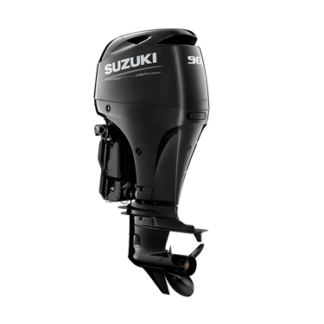

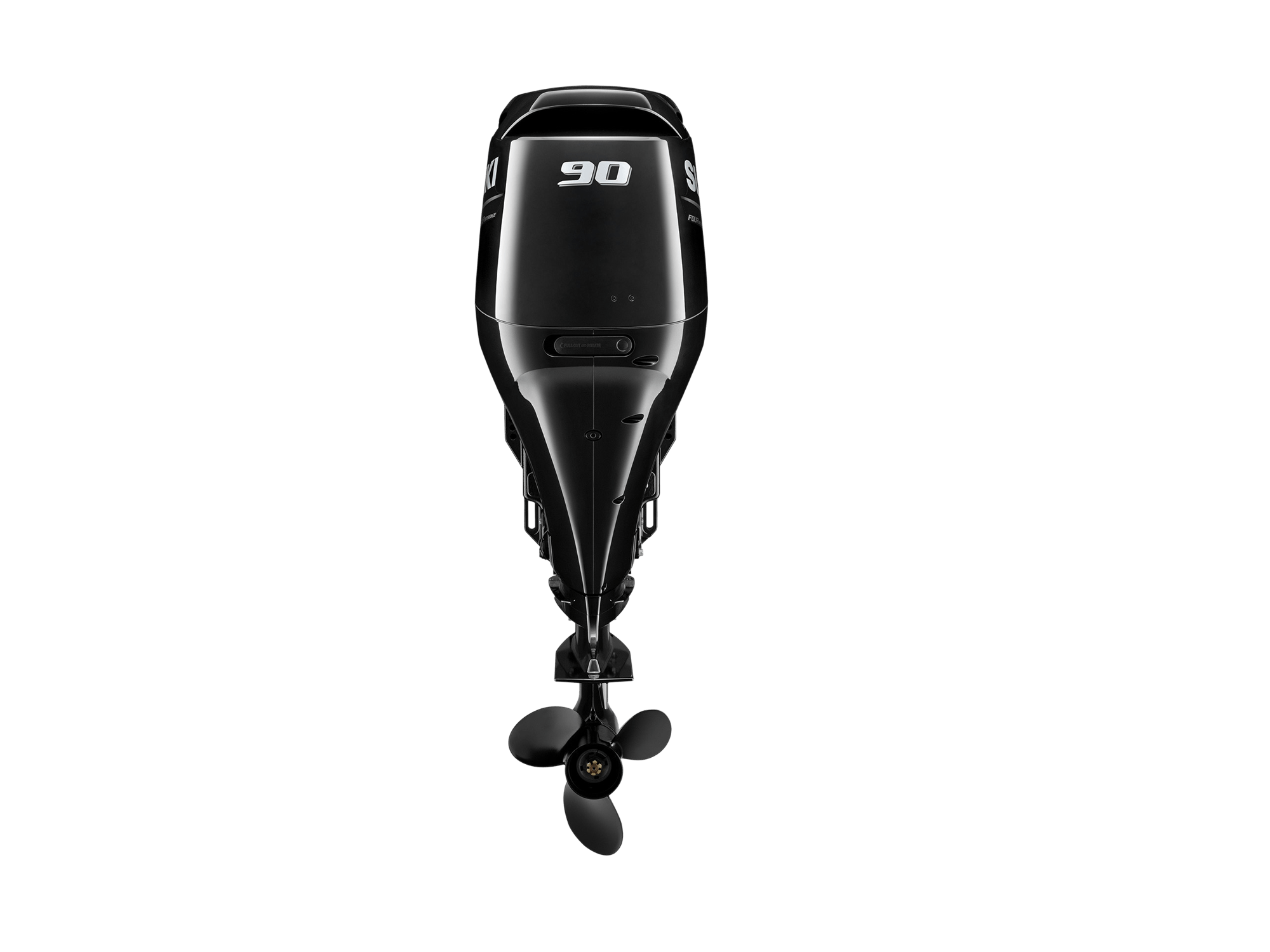

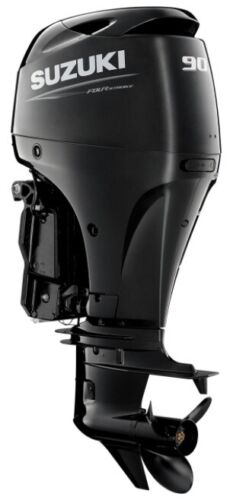

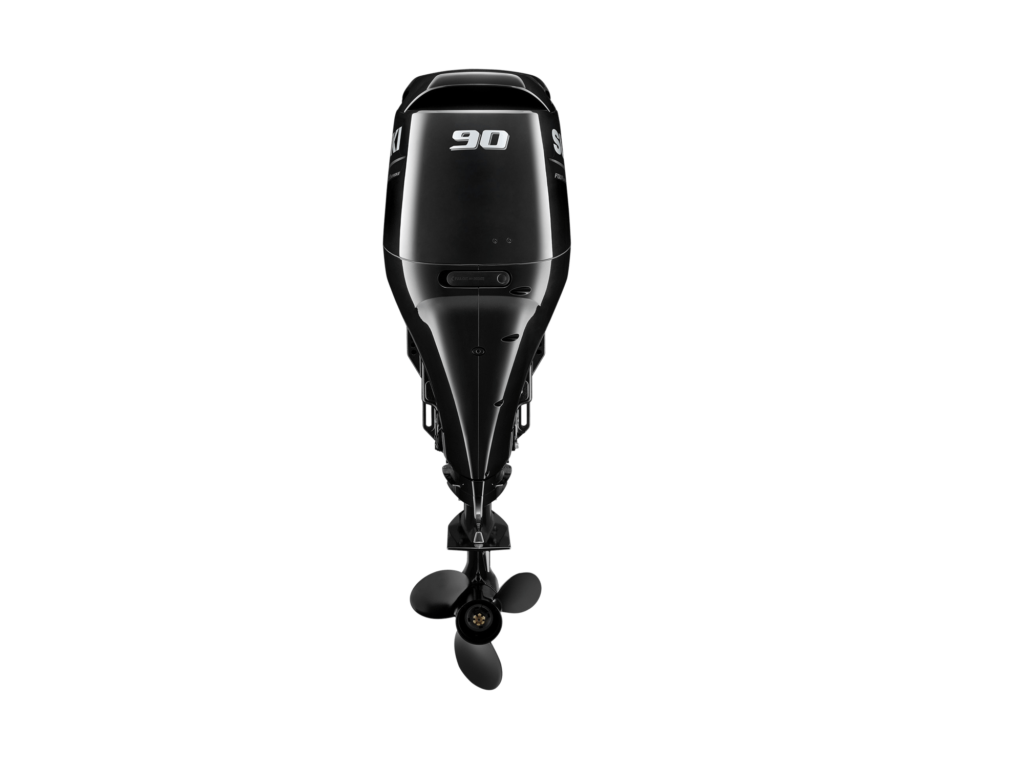

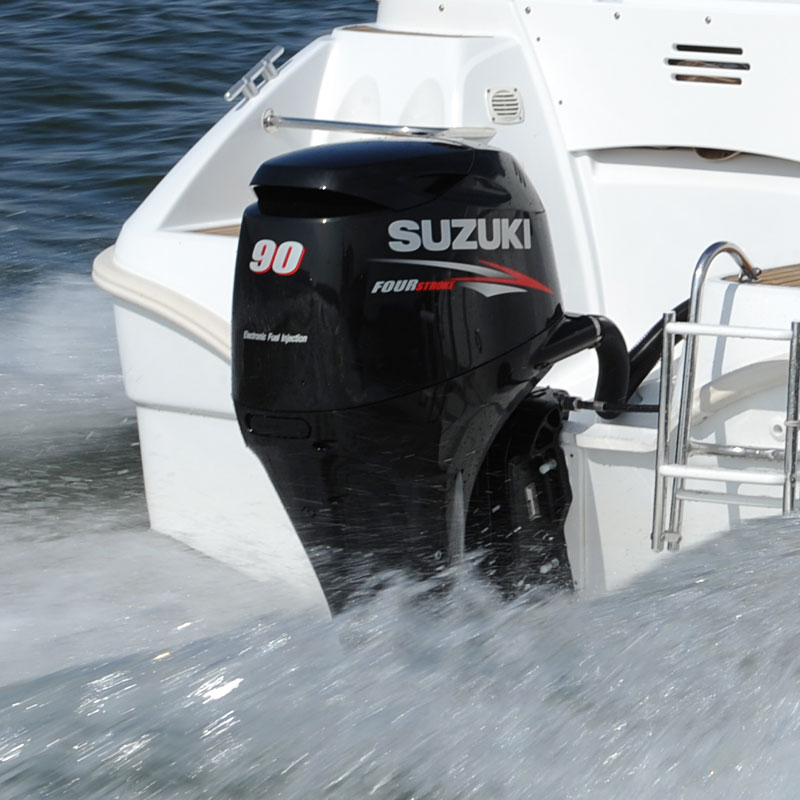

Suzuki DF90ATL 90hp Long Shaft Outboard Engine


Suzuki DF90


or call (0) 1392 877800 (0) 1392 876654 (0)7768470151

Suzuki DF90 ATL Long (508mm) £8899

Suzuki DF90 ATX Extra Long (608mm) £8899


The lightest, most compact and fuel-efficient outboard in its class with a large reduction gear ratio leading to a powerful torque for quick acceleration and great top speed.

Lean Burn control system

Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.

Offset drive shaft

The offset drive allows us to make our outboard engines smaller by moving the outboards centre of gravity forward, improving weight distribution, power output, balance and reduces vibration.

Self-adjusting timing chain

Simple, effective and maintenance free timing chain that runs in an oil-bath so it never needs lubricating and equipped with a hydraulic tensioner so it remains properly adjusted at all times.

Tilt limit systems

Protects the boat from damage when tilting the outboard, acting as both a tilt limit and trim sender, the step-free, continuous system allows you install the outboard on almost any boat.


Recommended transom height: L: 508mm (20in) X: 635mm (25in)

Weight: L: 156.0kg X: 160.0kg

Bore x Stroke: 75 x 85mm

Propeller Selection (pitch): 13" - 25"


Starting System: Electric

Engine Type: DOHC 16 valve

No. of Cylinders: 4

Piston Displacement: 1502cc

Maximum Output: 66.2KW

Full Throttle Operating Range: 5,300 - 6,300

Steering: Remote

Oil Pan Capacity: 4.0L

Fuel Tank Capacity: 25L (optional)

Ignition System: Fully-transistorised

Alternator: 12V 27A

Trim Method: Power Trim and Tilt

Gear Ratio: 2.59:1

Gear Shift: F-N-R

Exhaust: Through Prop Hub Exhaust

Contact us for price and availability
