Suzuki DF30ATS / ATL 30hp Short and Long Shaft Outboard Engine


Suzuki DF30A Lean Burn

Please contact us for our price match offers


or call (0) 1392 877800 (0) 1392 876654 (0)7768470151

Suzuki DF30ATS Short shaft (381mm) Electric start, Remote steer, (inc side mount control box) power tilt £4999

Suzuki DF30ATL Long shaft (508mm) Electric start, Remote steer, (inc side mount control box) power tilt £5099

Lightest in class outboard packed with Suzuki technology
Our engineers have packed the new in-line three-cylinder DF30A with some of Suzuki’s finest technologies giving it class-leading advantages that put it ahead of the rest. Engineering lightweight outboards has long been a Suzuki hallmark so in keeping with that, the DF30ATL is the lightest outboard in the 30hp class. It is the first in class to feature friction reducing roller rocker arms and to utilise an offset crankshaft to achieve smoother operation and greater mechanical efficiency. Fuel is supplied with our Lean Burn Control system and a Battery-Less Fuel Injection system that gives these outboards remarkable improvements in fuel efficiency while maintaining excellent power and performance. An LED monitoring system also provides engine operating status at a glance.

Offset crankshaft

Positioning the crankshaft slightly off-centre from the cylinder the lateral pressure on the cylinder wall is reduced resulting in a smoother piston movement which improves operating efficiency.

Largest reduction gear ratio in its class

A large reduction gear ratio leads to powerful torque for quick acceleration and great top-end speed.

Battery-less electronic fuel injection

Delivers quicker easier starts, smoother running and quick acceleration without the bulk and weight of a battery.

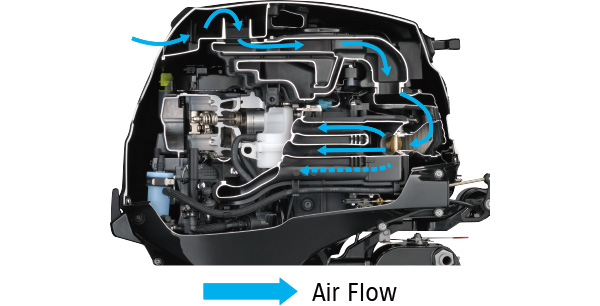

Direct intake

The cover design provides the direct intake system with a smoother, cooler flow of air boosting engine operating efficiency.


Starting System: Electric

Engine Type: 4-Stroke OHC

Fuel Delivery System: Battery-less Electronic Fuel Injection

No. of Cylinders: 3

Piston Displacement: 490cc

Maximum Output: 22.1KW

Full Throttle Operating Range: 5,300 - 6,300

Steering: Remote

Oil Pan Capacity: 1.5L

Fuel Tank Capacity: 25L

Ignition System: Digital CDI

Alternator: 12V 14A

Engine Mounting: Shear Mount

Trim Method: Power Trim & Tilt

Gear Ratio: 2.09:1

Gear Shift: F-N-R

Exhaust: Through prop Hub Exhaust


Recommended transom height: S: 381mm (15in) L:508mm (20in)

Weight: S: 71.0kg L: 72kg

Bore x Stroke: 60.4 x 57.0mm

Propeller Selection (pitch): 9" - 15"

Contact us for price and availability
