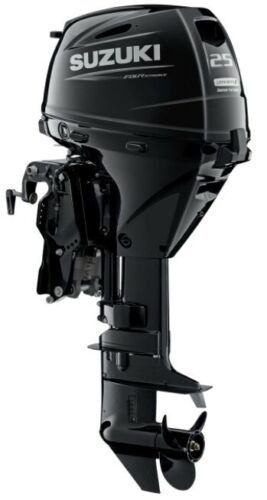

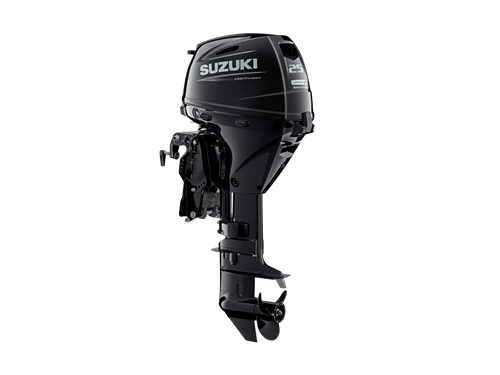

Suzuki DF25AS / ATL Short and Long Shaft Outboard Engine


Suzuki DF25A

DF25A Lean Burn

Please contact us for our price match offers


or call (0) 1392 877800 (0) 1392 876654 (0)7768470151

Suzuki DF25AS Short shaft (381mm) recoil start Tiller steer £3499

Suzuki DF25ATL long shaft (508mm) Electric start, remote steer, Power tilt, inc side mount control box £4499

Lightest in class outboard packed with Suzuki technology
Our engineers have packed the new in-line three-cylinder DF25A with some of Suzuki’s finest technologies giving it class-leading advantages that put it ahead of the rest. Engineering lightweight outboards has long been a Suzuki hallmark so in keeping with that, the DF25A is the lightest outboard in the 25hp class. It is the first in class to feature friction reducing roller rocker arms and to utilise an offset crankshaft to achieve smoother operation and greater mechanical efficiency. Fuel is supplied with our Lean Burn Control system and a Battery-Less Fuel Injection system that gives these outboards remarkable improvements in fuel efficiency while maintaining excellent power and performance. An LED monitoring system also provides engine operating status at a glance.

Key features

  • Lightest in the 25hp four-stroke outboard class.
  • Lean Burn Control and Battery-Less Fuel Injection deliver class-leading fuel-efficiency.
  • First in class with Roller Rocker Arms that provide smoother action and reduce friction.
  • Offset Crankshaft offers smoother piston movement for greater operating efficiency.
  • Direct Air Intake and Ventilation supplies engine with a cooler airflow for greater efficiency.
  • Engine Monitoring LED Indicators keep you informed of operating conditions.

Dimensions and weights

  • Recommended transom height: 381mm (15in)
  • Weight: 62.0Kg
  • Bore x Stroke: 60.4 x 57.0mm
  • Propeller Selection (pitch): 10 1/4 x 9 – 14

Engine specifications

  • Starting System: Manual
  • Engine Type: OHC 6-Valve
  • Fuel Delivery System: Battery-less Electronic Fuel Injection
  • No. of Cylinders: In-line 3
  • Piston Displacement cm3: 490cc
  • Maximum Output: 18.4kW
  • Full Throttle Operating Range: 5,000 – 6,000
  • Steering: Tiller
  • Oil Pan Capacity: 1.5Lit.
  • Ignition System: Digital CDI
  • Alternator: 14A
  • Engine Mounting: Shear Mount
  • Trim Method: Manual Trim & Tilt
  • Gear Ratio: 2.09:1
  • Gear Shift: F-N-R
  • Exhaust: Through-prop Hub Exhaust

Contact us for price and availability
