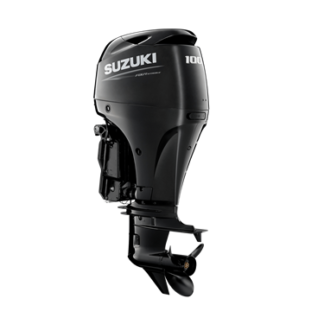

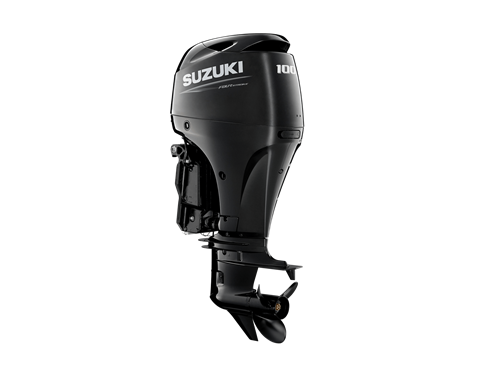

Suzuki DF100 B 100hp Long Shaft Outboard Engine

Please contact us for our price match offers ashmarine@msn.com

Email: ashmarine@msn.com

or call (0) 1392 877800 (0) 1392 876654 (0)7768470151

Suzuki DF100BTL Long Shaft (508mm) £9399

Suzuki DF100BTX Extra-Long Shaft (508mm) £9699

Suzuki's Anti corrosion finish

Specially formulated to protect your outboard from exposure to salt and fresh water.

Water Detecting System

Helps to protect the engine from water in the fuel using a water detecting fuel filter to alert the operator with both visual and audio warnings when water is present in the fuel.

Self-Adjusting timing chain

Simple, effective and maintenance free timing chain that runs in an oil-bath so it never needs lubricating and equipped with a hydraulic tensioner so it remains properly adjusted at all times.

Tilt limit system

Protects the boat from damage when tilting the outboard, acting as both a tilt limit and trim sender, the step-free, continuous system allows you to install the outboard on almost any boat.

Lean Burn Control Technology

Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.

DIMENSIONS AND WEIGHT

Recommended transom height L: 508 X: 635

Weight L: 157 X: 161

Bore x Stroke 75 x 85

Propeller Selection (pitch) 13”-23”

ENGINE SPECIFICATIONS

Starting System Electric

Engine Type DOHC 16-Valve

Fuel Delivery System Multi-Point Sequential Electronic Fuel Injection

No. of Cylinders 4

Piston Displacement 1,502

Maximum Output 73.6

Full Throttle Operating Range 5,700-6,300

Steering Remote

Oil Pan Capacity 4

Fuel Tank Capacity 25 (Optional)

Ignition System Fully-transistorized

Alternator 12V 27A

Engine Mounting Shear Mount

Trim Method Power Trim and Tilt

Gear Ratio 2.59:1

Gear Shift F-N-R

Exhaust Through Prop Hub Exhaust
