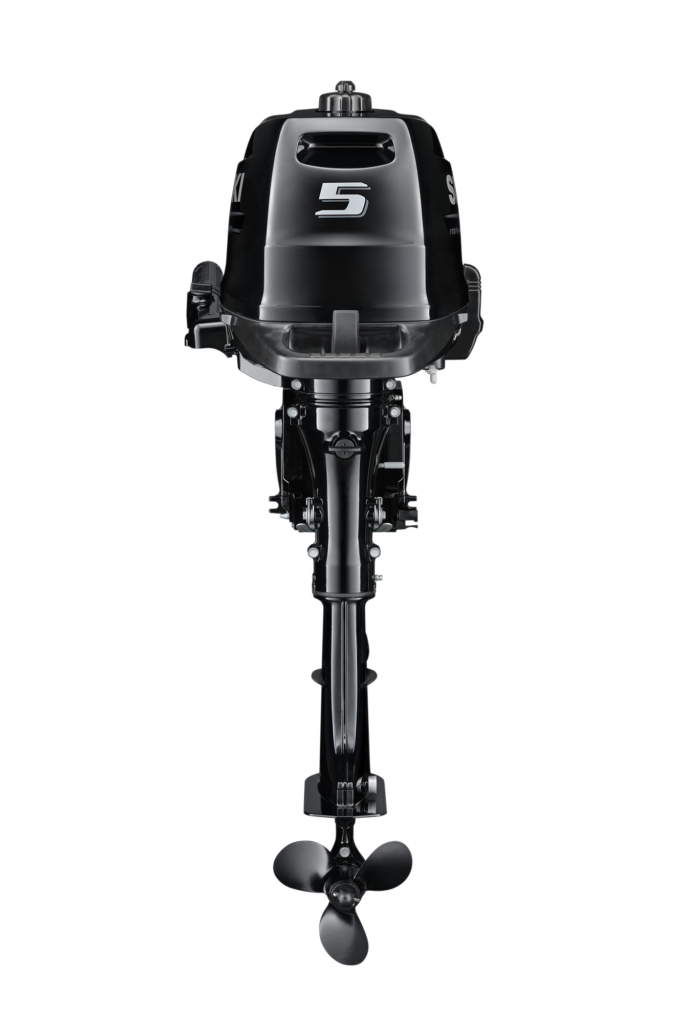

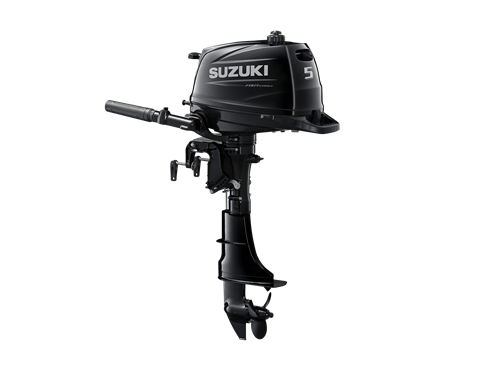

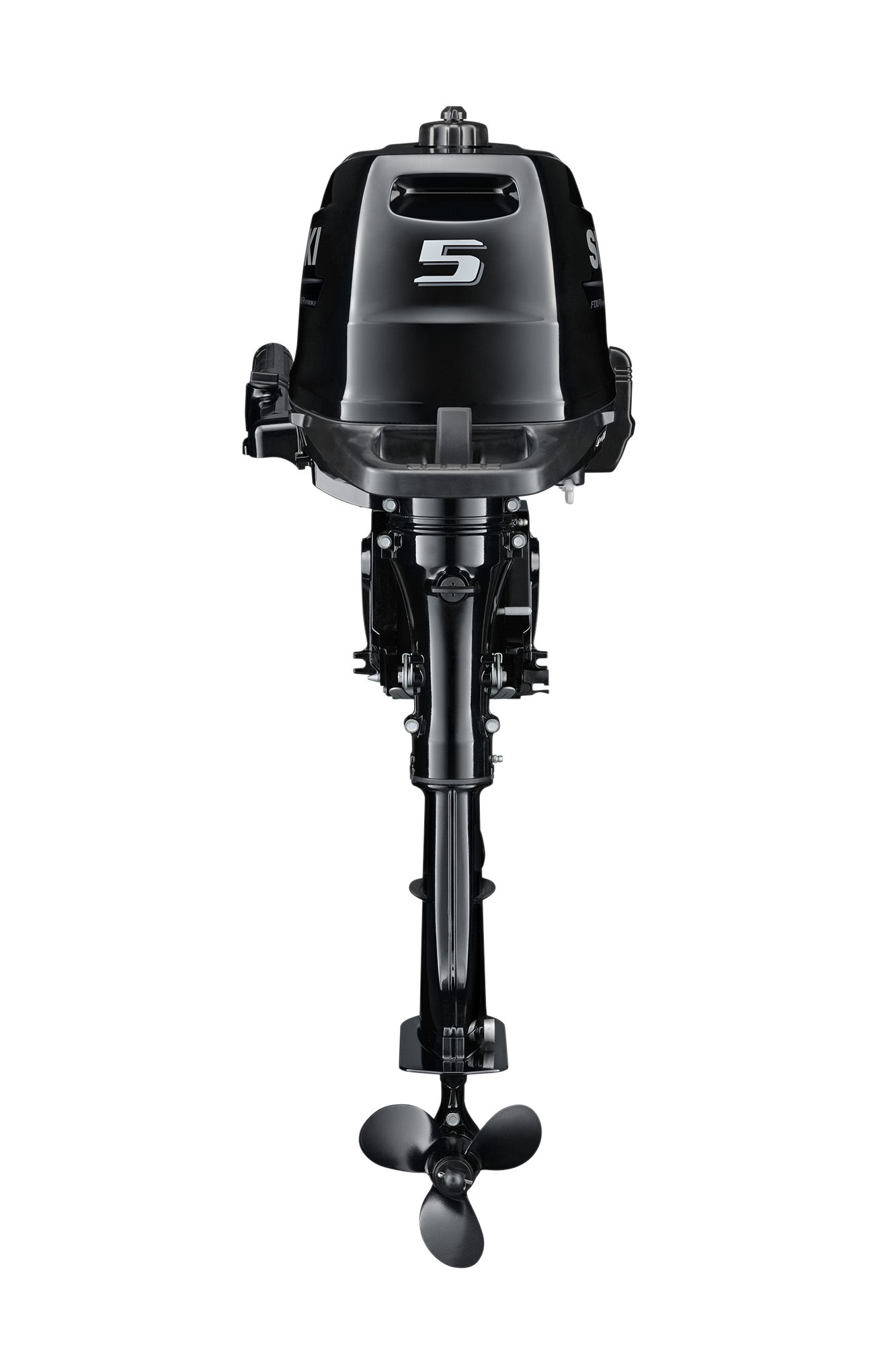

Suzuki DF5A 5hp Short Shaft Outboard Engine



Please contact us for our price match offers


or call (0) 1392 877800 (0) 1392 876654 (0)7768470151

Options Available

DF5AS (Tiller, Manual start, Short shaft (381mm) 24KG) £2450

DF5AL (Tiller, Manual start, Long shaft (508mm) 25KG) £2450

Easy to carry, easy to store, easy to use

Our brand new 4hp, 5hp and 6hp models are lightweight, easy and quiet to use, incredibly reliable plus they also boast a new design and unique colour.

With a compact design and weighing in at only 24kg (short shaft) these new outboards are incredibly versatile and with class-leading technical innovations and some simple, yet effective, ergonomic design features, these new models are incredibly easy to live with.

The key benefits and features are:

  • Easy to transport and store courtesy of a new three-way storage capability which eliminates the worry of fuel or oil leakage
  • Easy to lift and carry with two sturdy handles
  • Easy to start after storage courtesy of a new forced lubrication and gravity-fed fuel system
  • Easy to use with new tilt system
  • Smooth and quiet running thanks to an offset crankshaft
  • Low vibration as a result of a new tiller handle design
  • Highly reliable thanks to a first in class oil filter
  • Incredibly durable thanks to our anti-corrision system

Dimensions and weights

  • Recommended transom height: 508mm (20in)
  • Weight: 25.0Kg
  • Bore x Stroke: 60.4 x 48mm

Engine specifications

  • Starting System: Manual
  • Engine Type: OHV
  • Fuel Delivery System: Carburettor
  • No. of Cylinders: 1
  • Piston Displacement cm3: 138cc
  • Maximum Output: 3.7kWkW
  • Full Throttle Operating Range: 4,500 – 5,500
  • Steering: Tiller
  • Oil Pan Capacity: 0.7Lit.
  • Fuel Tank Capacity: 1.0Lit.
  • Ignition System: Digital CDI
  • Alternator: 12V 6A (optional)
  • Engine Mounting: Bushing Type
  • Trim Method: Manual
  • Gear Ratio: 1.92:1
  • Gear Shift: F-N-R
  • Exhaust: Above Prop Exhaust

Contact us for price and availability
