Engine |
4 Stroke 3 Cylinder |
Output |
30 ps (22.1 kw) |
Displacement |
500 cc (30.5 cu.in.) |
Bore x Stroke |
61 x 57 mm (2.4 x 2.25 in) |
Starting |
Electric or Manual |
Control Type |
Remote Control or Tiller Handle |
Gear Shift |
Forward – Neutral – Reverse |
Gear Ratio |
2.17:1 (12:26) |
Propeller Selection Range |
8″ – 14″ |
Transom Height |
15″, 20″ |
Fuel |
Unleaded Gasoline (87 Octane) |
Oil Type |
NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ) |
Oil Capacity |
1.7L (1.8 qt.) |
Fuel Tank |
25 L (6.6 US Gal.) Separate Fuel Tank |
Weight* |
58 kg (128 lbs.) |
Alternator Output |
12V, 210W, 17.5A |
Max. RPM Range |
5,500 – 6,500 |
Electronic Fuel Injection |
Standard |
Digital CD Ignition System |
Standard |
Start In Gear Protection |
Standard |
Thermostat Controlled Cooling System |
Standard |

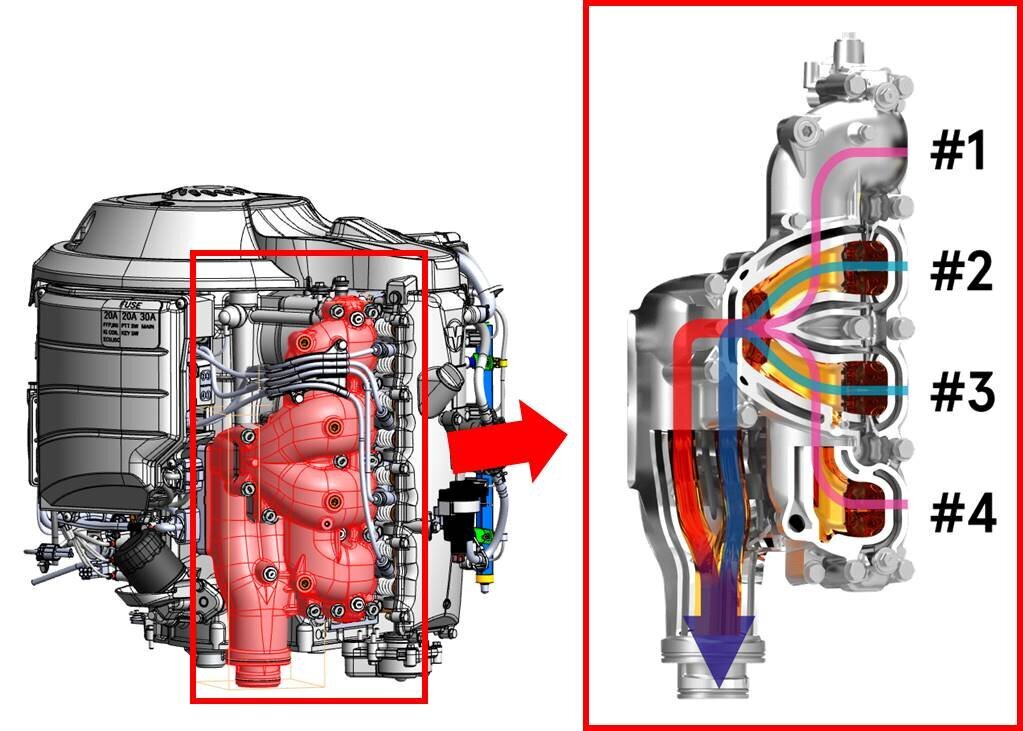

Through-The-Prop Exhaust |
Standard |
Overheat Buzzer |
Standard |
Power Trim and Tilt |
Option |
Oil Pressure Warning |
Standard |
Variable Idle Speed |
Standard |
Shallow Water Drive |
Standard |
