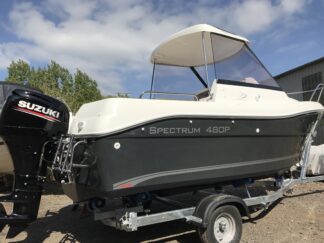

Spectrum 480P with Suzuki DF50 ATL




It offers great value for money and a great standard specification

The Suzuki DF 50hp ATL 4/stroke 104 KG


Fuel Consumption at 5000: 13.2. LPH .

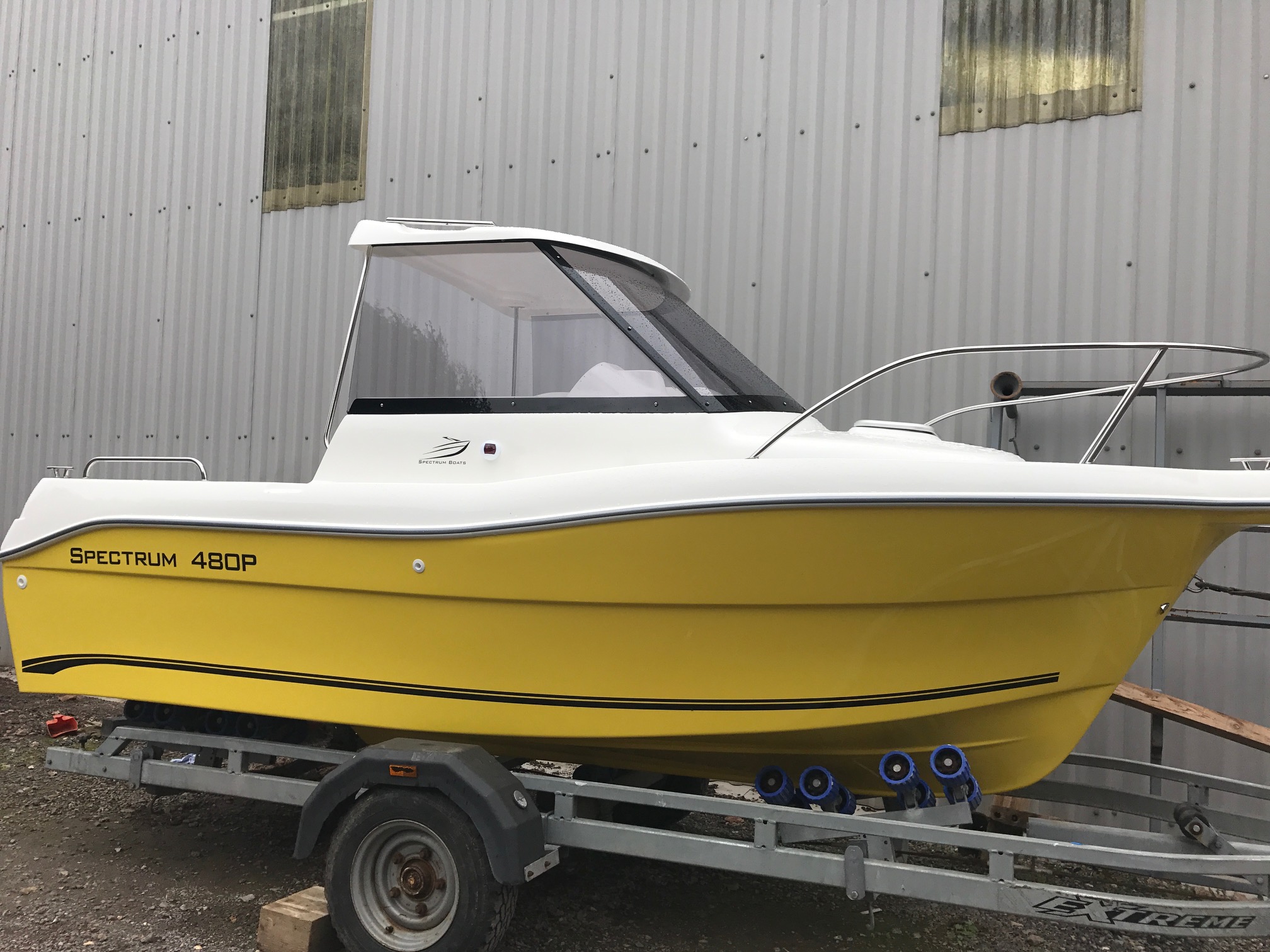

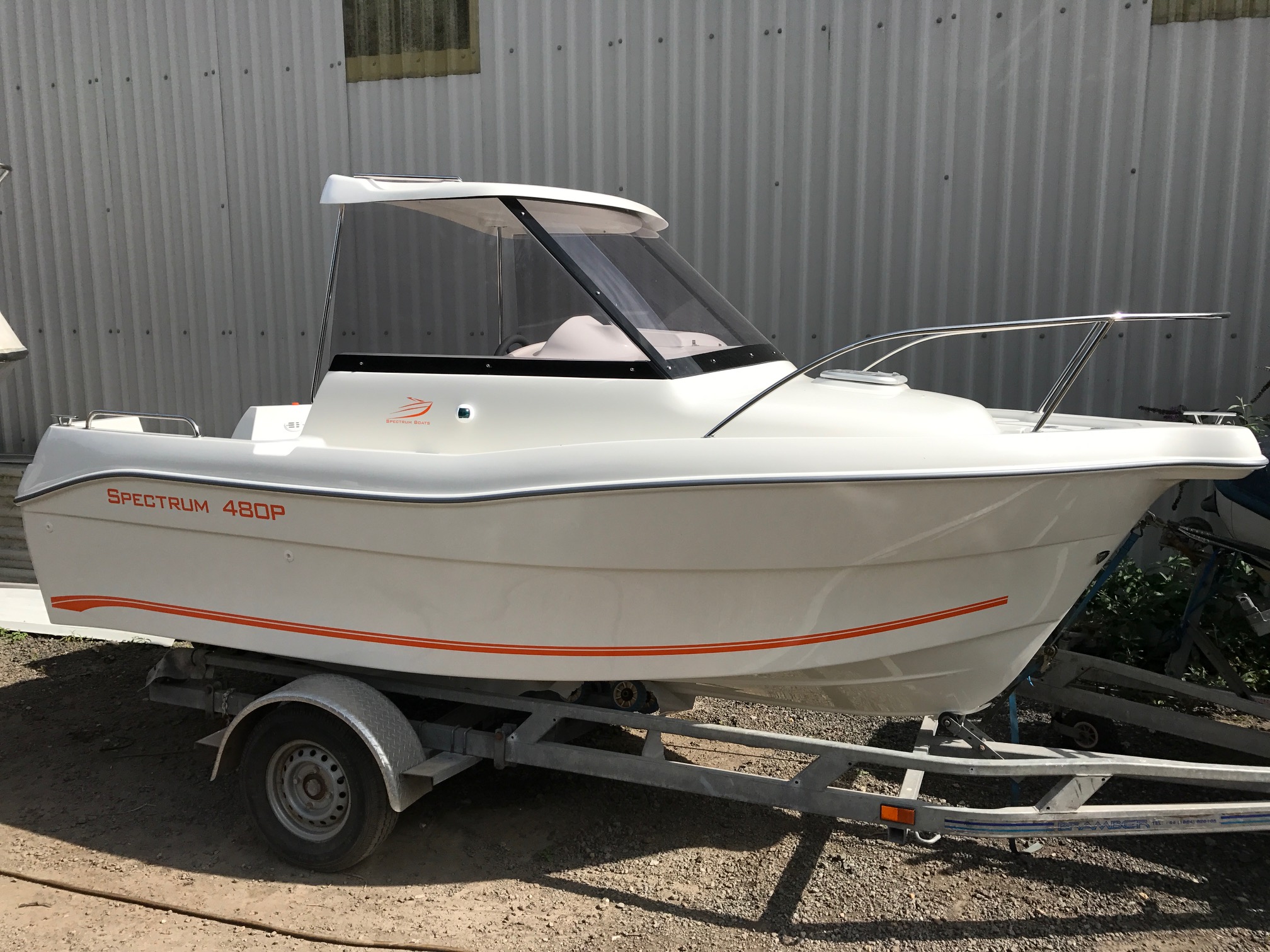

The spectrum 480 Pilothouse boat package, as above, fitted with the Suzuki DF50 ATL 4/stroke outboard motor, all fully rigged and ready to go.

Spectrum 480 Pilothouse - designed for both boat anglers and people who like active recreation on the water. The Pilothouse has an addition of a high of 1.25 m extended wheelhouse, providing comfort and protection for captain and crew during bad weather.

The cockpit features easy-to-clean Teak effect self-draining flooring with a non-slip white gelcoat option. For the serious fisherman out there, there is a bench for additional seating on the starboard side, which can be removed for an even bigger cockpit. We offer options of top-quality folding captain seats and even a folding side crew seat.

Includes the following...

STANDARD WHITE OR ATHRACITE GREY HULL (other colours available at extra cost)

  • Spectrum’s moulded non-slip deck system on all tread areas or Teak effect flooring
  • Anodised aluminium framed and glazed front hatch into the cabin
  • Teleflex steering system and with a comfortable 5 spoke padded steering wheel
  • Navigation lights
  • Two stainless steel mooring cleats on the stern and one to the bow
  • An electric bilge pump below deck
  • The under-floor buoyancy chamber is foam-filled
  • Top quality vinyl cushions for the cabin
  • Foot well inline bilge pump for excess water
  • full-length stainless steel grab rails to both sides of the cockpit and a full pulpit to the bow of the boat
  • leading 4/stroke and direct injection outboard motors available, all with the manufacturer's 5 year warranty, and all fully-rigged
  • Engine locking bolt (this secures the main engine to the transom, and is usually an insurance requirement)
  • 85amp Marine deep cycle battery
  • Battery Box
  • Battery isolator switch
  • 2 Ultra flex Control cables
  • 24lt Tohatsu Fuel tank with quick connect fuel line
  • Aluminium Propeller
  • Rubber rigging grommet


Overall Length: 4.8 M Beam: 2.09 M

Freeboard: 26inches Maximum engine size: 60 hp

Design Category: Maximum persons capacity: 5 (375 kg max.)

Typical weight: 440kg Personal effects and tackle: 175 kg

Height on trailer (approx) 2.8M

Cabin measurements Max length 200cm Max width 180 cm

Hull design

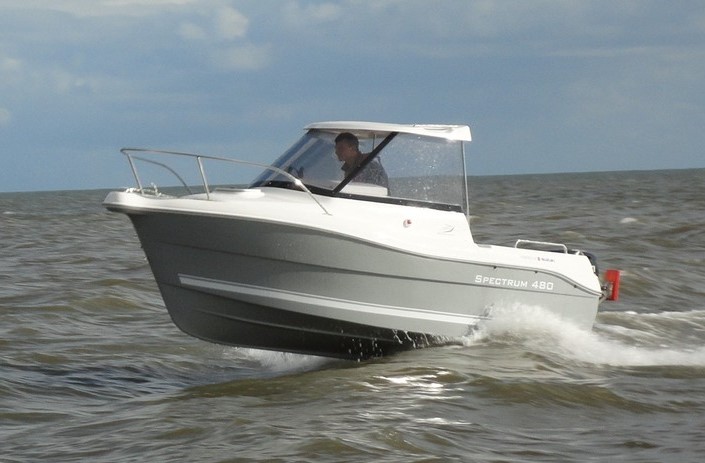

The modern white hull makes for a clean look and is designed for excellent sea-keeping qualities. Combining a smooth ride with stability. A defined V and reasonably flat bottom with skeg to the stern reduces “weave” at low speeds. Spectrum’s moulded non-slip deck system on all tread areas. Navigation lights.


The under-floor buoyancy chamber is foam-filled to give buoyancy.

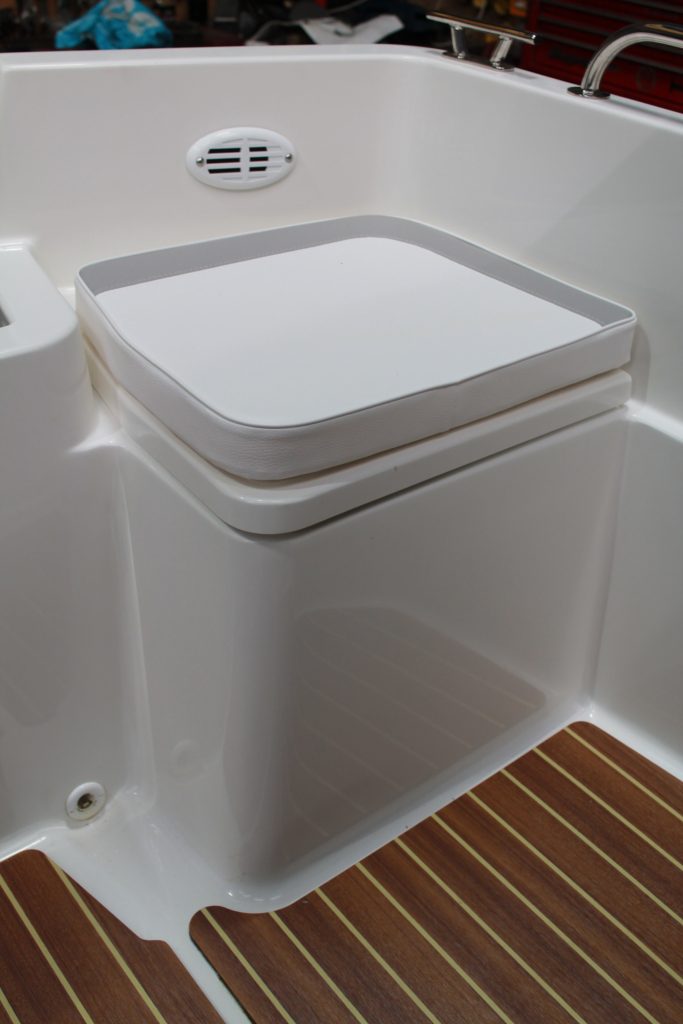

The generous cockpit makes the Spectrum 480 ideal for fishing, diving, and family fun. Furnished with high quality vinyl cushions for all seating. A removable side bench seat creates even more deck space. The cockpit has 2 self-draining points as well a electric bilge pump below deck.


The windows are polycarbonate and are fastened with stainless steel screws to resist wave impact, an essential feature for seaworthiness.

Steering System

The Spectrum 480 is equipped as standard with top quality, Teleflex Negative feedback steering system, No Feedback is a built into the helm which locks out steering loads caused by propeller torque thus minimizing the effects of the feedback and minimizing the effort on the operator to steer the boat and with a comfortable 5 spoke padded steering wheel.


Deep anchor locker to the bow with drainage. Two heavy-duty stainless-steel stern cleats are provided in addition to the foredeck mooring Cleat. Non slip gelcoat deck.

Grab Rails:

The standard equipment includes full-length stainless steel grab rails to both sides of the cockpit and a full pulpit to the bow of the boat.


Inside the cabin there is a comfortable place for crew to shelter from the weather or to have the occasional night's sleep. Cushions are supplied as standard, and they can be colour coordinated with the hull of the boat. Anodised aluminium framed and glazed front hatch to provide more light and ventilation into the cabin.

Colour Options

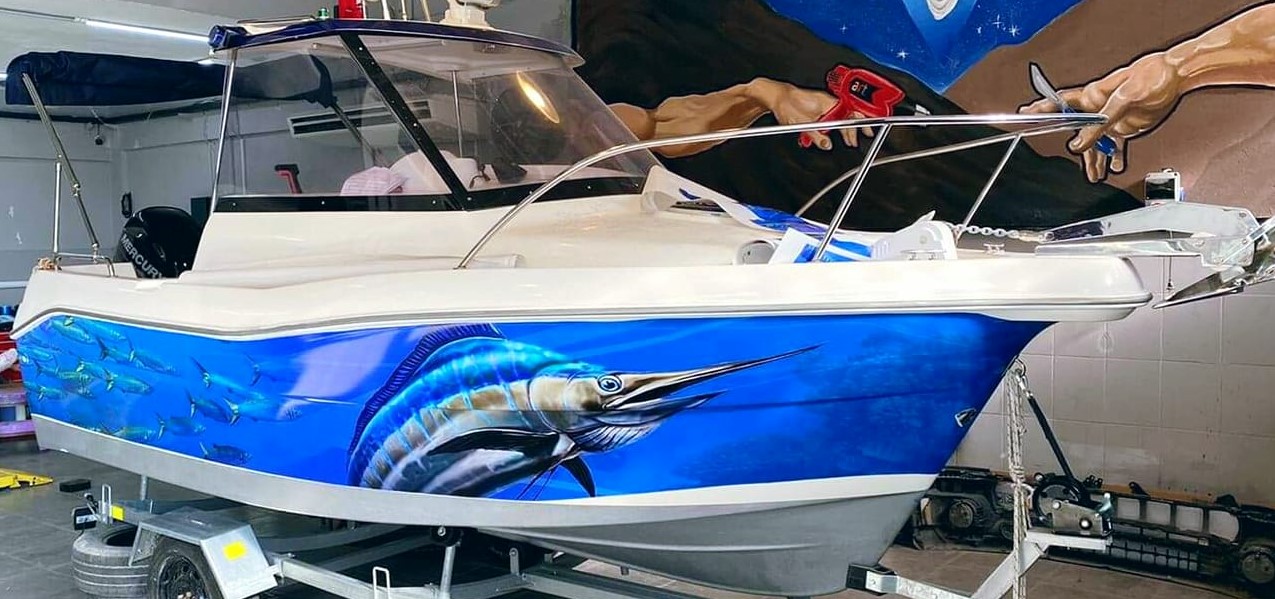

Available in many colourways with a choice of interior upholstery colours.
